High Performance Energy Storage Systems

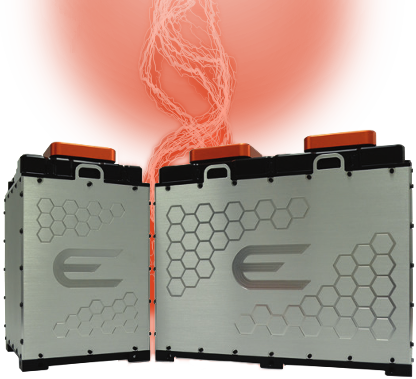

ELMOFO E-Cells... leading the way in Lithium battery technology

Designed and assembled in Australia, ELMOFO E-Cells are made for Australian conditions.
The modules employ Kokam's advanced Lithium cell technology - rigorously tested and refined to produce one of the most energy dense storage systems available today.

RESIDENTIAL ENERGY STORAGE SYSTEMS
Energy storage systems reduce power bills and provide blackout protection for essential appliances - more and more people are adopting this technology in their homes. Teamed with an effective solar array, it's easy to gain energy independence for your home with ELMOFO E-Cells.
COMMERCIAL & INDUSTRIAL
For industries with significant power requirements and high energy consuming equipment, ELMOFO E-Cells offer an efficient energy solution. Capable of high discharge currents and featuring a very long cycle life, these batteries are available in industry standard voltages of 24 and 48Vdc.
RACING & ELECTRIC VEHICLES
The ELMOFO E-Cells have a proven performance record in Electric Race Vehicles. The high energy density modules (up to 134Wh/kg) equal higher capacity for less weight. The high C-rate discharge is ideal for high-performance applications and is suitable for DC Fast Charging.
ELECTRIC & HYBRID MARINE
The same attributes that make the ELMOFO E-Cells a superior choice for electric vehicles apply to your marine requirements. The clean, anodised, machined aluminium finish is perfect for premium installations & maximum durability.

RESIDENTIAL ENERGY STORAGE & BLACKOUT PROTECTION

Energy storage systems reduce power bills and provide blackout protection for essential appliances; it's no wonder that more and more people are adopting this technology in their homes. Teamed with an effective solar array, it's easy to gain energy independence for your home with ELMOFO E-Cells.

Solar Power Australia can install an Energy Storage System (ESS) that is designed to capture the energy generated fromyour solar panels. The system enables you to store unused energy during the day for use at night or during peak times.

The ESS has built-in programmable technology allowing us to tell it when to charge and when to discharge based on your individual requirements. You'll have control of when and how you use your power, reducing your reliance on the grid during high-cost peak times.

ELMOFO E-Cells Specifications

ELMOFO Lithium Module ALB26-80 ALB26-106 ALB52-80 ALB52-106
Module Voltage (Nominal) 25.9 Vdc 25.9 Vdc 51.8 Vdc 51.8 Vdc
Module Capacity 80 Ah 106 Ah 80 Ah 106 Ah
Module Energy Capacity 2.072 kWh 2.745 kWh 4.144 kWh 5.490 kWh
Usable Energy (Maximum) 1.865 kWh 2.470 kWh 3.730 kWh 4.940 kWh
Usable Energy (Long Life) 1.657 kWh 2.196 kWh 3.315 kWh 4.392 kWh
Maximum Current Draw (Ind / EV) 1200 Amps 848 Amps 1200 Amps 848 Amps
Recommended ESS Current Draw 80 Amps 106 Amps 80 Amps 106 Amps
Recommended ESS Inverter Rating 2.0 kW 2.7 kW 4.1 kW 5.5 kW
Module Weight 18.6 kg 21.0 kg 37.0 kg 41.0 kg
Module Dimensions (L x W x H) 190 x 229 x 324 190 x 229 x 324 372 x 229 x 324 372 x 229 x 324
Module Energy Density by Weight 111 Wh/kg 130 Wh/kg 112 Wh/kg 134 Wh/kg
Cycle Life > 6000 cycles > 6000 cycles > 6000 cycles > 6000 cycles
Life Expectancy > 10 years > 10 years > 10 years > 10 years
Battery Management System (BMS) Inside Inside Inside Inside

Proven Experience

ELMOFO E-Cells have been tried and tested under extreme conditions to guarantee high-performance and durability.

ELMOFO E-Cell technology was originally developed to provide high-performance power for the ELMOFO Electric Radical, the first electric vehicle to win a sanctioned circuit race against V8 powered SuperSports racecars. ELMOFO E-Cells have been tried and tested under these intense conditions, guaranteeing superior performance.

ELMOFO E-Cells were chosen by Newcastle City Council over other alternatives for their No.2 Sportsground Energy Storage System. The E-cells incorporate an Australian engineered Batrium BMS (Battery Management System) which enables integration with an advanced monitoring system and ensures maximum safety and lifespan.

About ELMOFO

ELMOFO specialise in the design and supply of high-performance Energy Storage Systems (ESS). We work with our industry partners to develop new performance products to meet more demanding ESS applications.

Based in Newcastle NSW Australia, ELMOFO can provide you with cutting-edge ESS technology to bring your high-performance project to life. We provide professional consultation to tailor solutions that are right for you.
